Frido ProTech 2

Frido ProTech 2

A ceiling mounted 222nm Far-UVC unit that sanitises the air and surfaces of a room whilst people are in it. It is 22cm across, uses 20W, covers about 20 square metres under a 3m ceiling, and is CE and UKCA certified. It is installed with various cruise ships and super yachts, London restaurants, Ygia Polyclinic and in City of London offices.

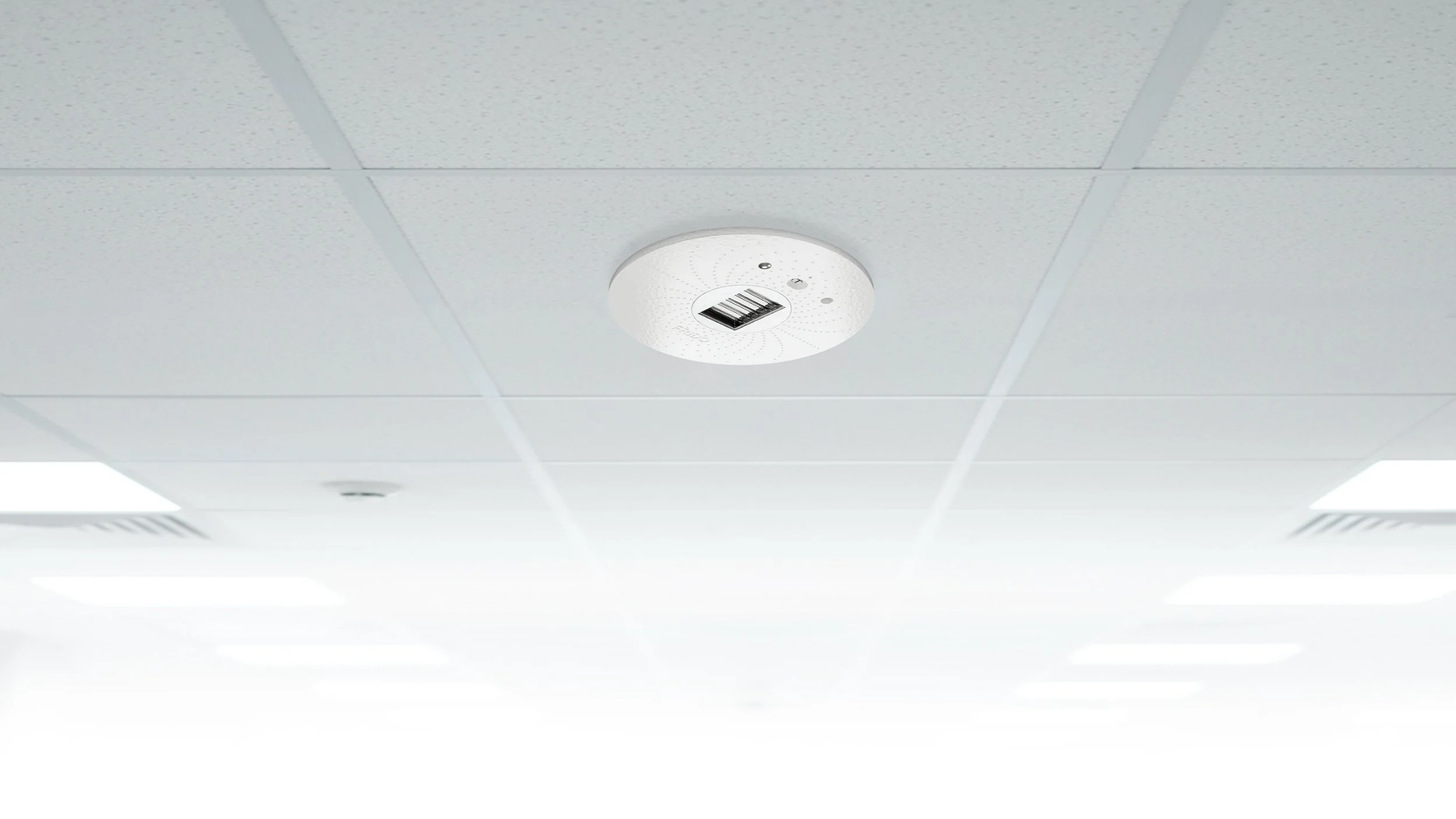

Ceiling with LED lights and a smoke detector.

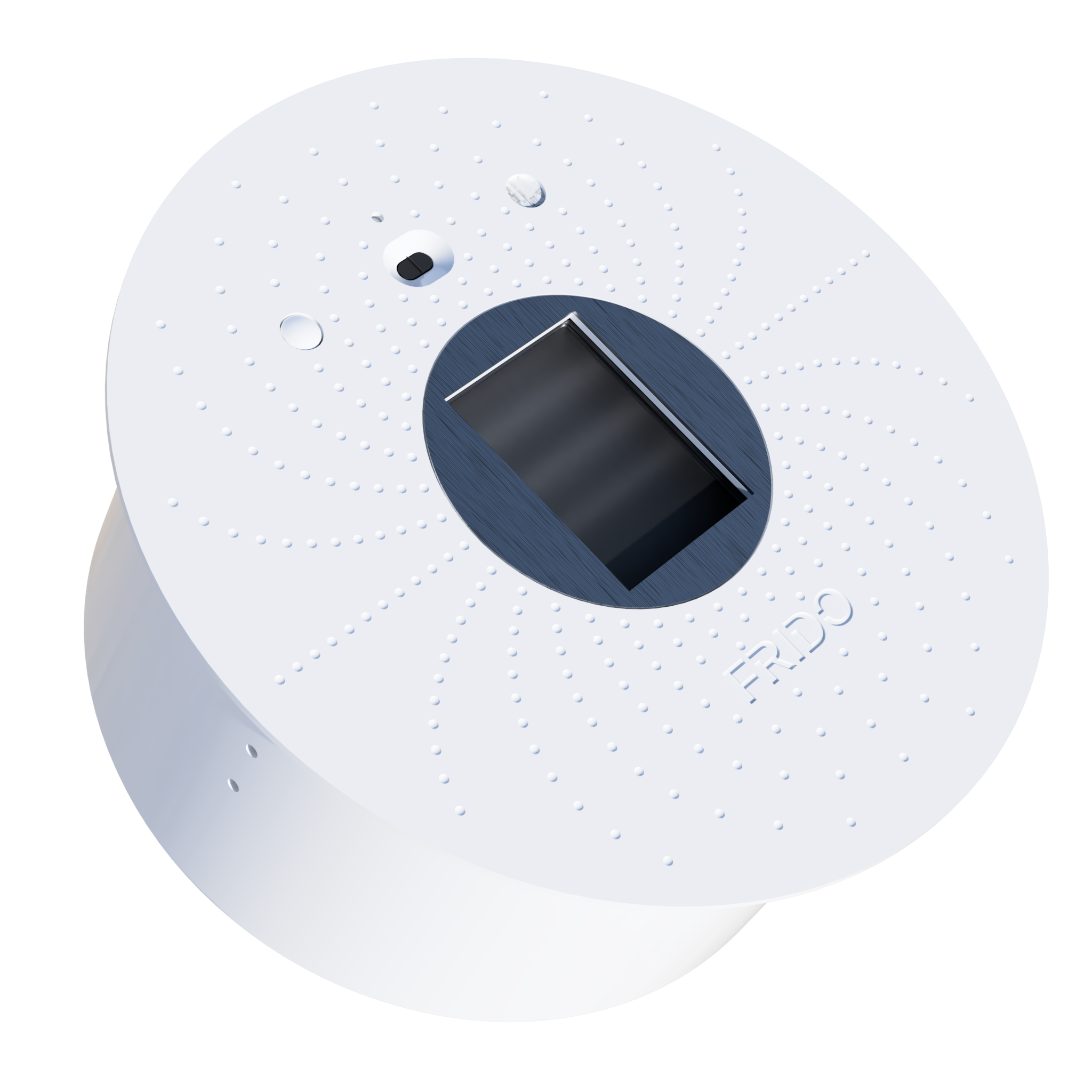

Ceiling mounted

Designed to be flush mounted in ceilings, with custom front panel colours as required.

22cm diameter, so it replaces other ceiling devices or cuts into a ceiling panel. Aluminium body, low heat signature, supplied with a fire dome.

Silhouettes of multiple people standing under a ceiling-mounted projector that illuminates a 5-meter wide and 3-meter high area, with the logo 'FRIDO Technologies' in the bottom right corner.

Wide area coverage

Under a 3m ceiling each unit covers approximately 20 square metres. A series of units covers a restaurant, a bar or a whole deck.

We work out how many you need and where they go from the room size, ceiling height and how the room is used.

Close-up of a white, round device with the brand name 'FRiDO' at the bottom; it has three small indicator lights at the top, two gray and one blue, with the blue light illuminated.

Visible & reassuring

The light itself is invisible. A discreet pulsing LED shows that the unit is on and working.


Programmable

A controller in each unit logs what it does, limits emissions over time and dims the lamp to keep the dose inside the regulations.

The motion sensor prolongs the life of the lamp by resting it when the room is empty, and the LiDAR sensor maximises efficiency.


Safety by design

Multiple integrated safety systems to ensure correct dosing. Read more about safety here

Low heat signature, IP rated and supplied with fire-dome.

Two people reaching out to touch hands in front of a dark gray architectural structure with vertical lines and a cloudy sky background.

Connected

Units talk to each other across a building or a ship and act as one system. Settings and firmware are updated remotely. Each unit reports its health and the dose it has delivered, so an operator can check a whole estate from one screen.

An optional analytics service shows usage, dosing and the room environment over time.

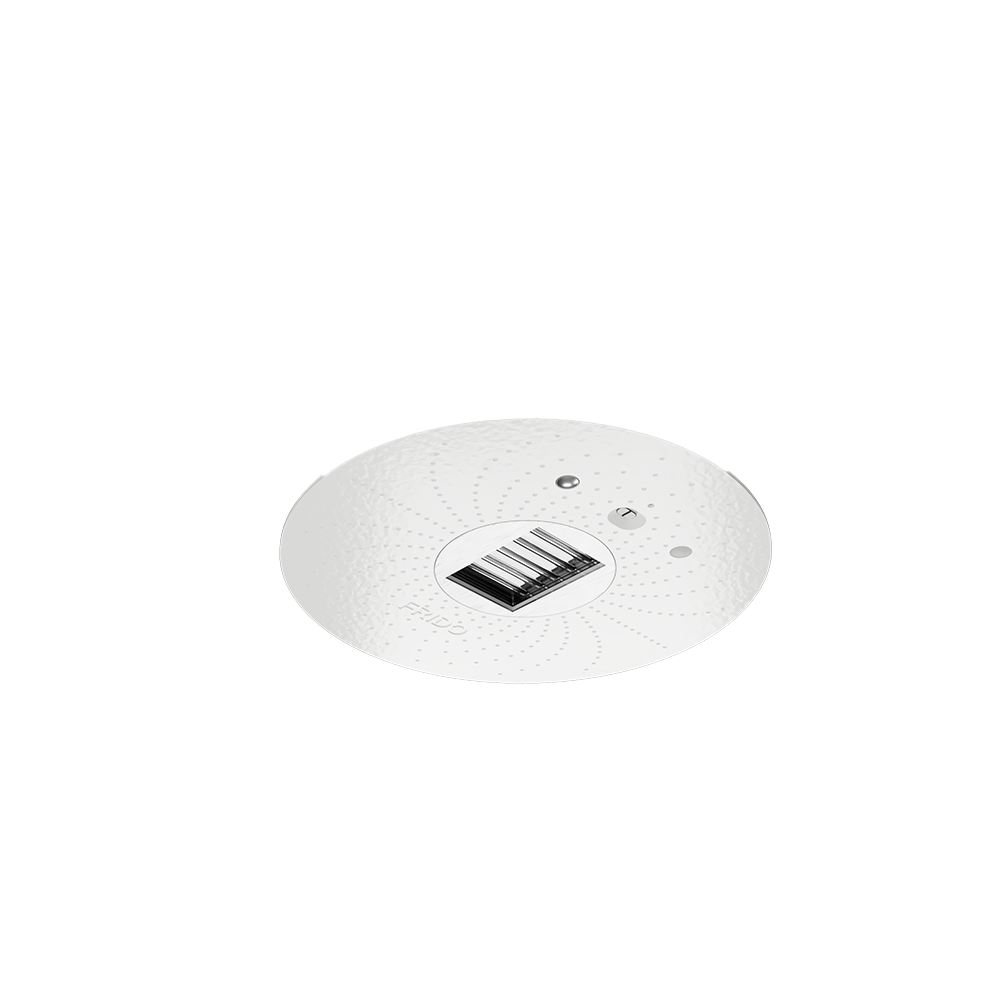

A large white circular disk with a rectangular opening and small raised dots arranged in spiral patterns, with the brand name "FRIDO" embossed on it.

Input Voltage: 100-240 VAC 50/60Hz

Wattage: 20W

Lamp: Ushio Care222 filtered module

Primary Material: Aluminium

IP Rating: IP20

Sensors: PIR, LiDAR, Temperature

Connection: Wireless and hardwired

Dimensions: ø220mm x H102mm

Certification: CE, UKCA

Application: UVC Sterilisation + Viral Control

Warranty: 1 year manufacturer’s warranty

Installing it

It goes in like a downlight: a ceiling cut-out, mains power and an optional wireless network connection. Your own electrician can fit it. We can supply the placement plan, commission the units and check remotely that each one is reporting.
